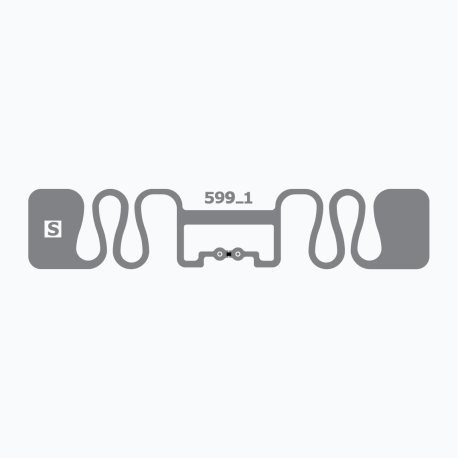

AD Belt Impinj M730, RFID UHF

AD Belt M730 inlays and tags are designed for global retail, logistics and supply-chain applications, offering excellent performance on difficult-to-tag or low detuning materials such as cardboard and plastic, and in other demanding, close-coupling environments.

With a compact 73 mm (2.8 inch) form factor, easily convertible into end-application usage, they are available in dry, wet and paper tag delivery formats.

The AD Belt M700 series features Impinj’s M730 IC, offering high performance across different materials and challenging environments due to enhanced adaptive RF tuning features. It also has improved read and write sensitivity, with very fast and accurate reading within a large population of tags, and a privacy mode which enables loss prevention and protects consumer privacy by making a tag invisible to RAIN readers.

The Impinj M730 IC has 128-bit EPC memory. The IC is compatible with the global GS1 UHF Gen2v2 standard which ISO/IEC standardized as 18000-63.

For chip details, click here.

• Antena DIMENSIONS: 70 x 14 mm;
• Chip: Impinj M730 - UHF (860 - 960 MHz);
• MATERIAL: 40# Paper;
• OPERATING TEMPERATURE: -40°C to 85°C or -40°F to 185°F;
• ON-METAL: No;
• waterproof: Yes;
• Industry segments: Apparel, Logistics, Automotive;
• Applications: Home Essentials, supply Chain Management, inventory and logistics.

For larger quantities, please, contact us.
